| Место происхождения: | Китай |
|---|---|
| Фирменное наименование: | SINOLIFT |
| Сертификация: | CE |
| Номер модели: | PFM |
| Количество мин заказа: | 1 комплект |
| Цена: | Подлежит обсуждению |
| Упаковывая детали: | Пакет экспорта Sandard |
| Время доставки: | 15 дней |
| Условия оплаты: | LC, D/A, D/P, T/T, Western Union, MoneyGram |
| Поставка способности: | 5000 наборов/рот |
| Название продукта: | Штабелер для рулонных и бобинных материалов Sinolift PFM — простое ручное управление | Вес рулона: | 200 (440) кг (фунтов) |
|---|---|---|---|
| Высота подъема: | 1300 мм | Габаритные размеры подъемника носителя (Ш x Г x В): | 570 х 650 х 1580 мм |
| Вес медиаподъемника: | 80(175)кг (фунты) | Нижний зазор вилки: | 75 мм |
Product Description:

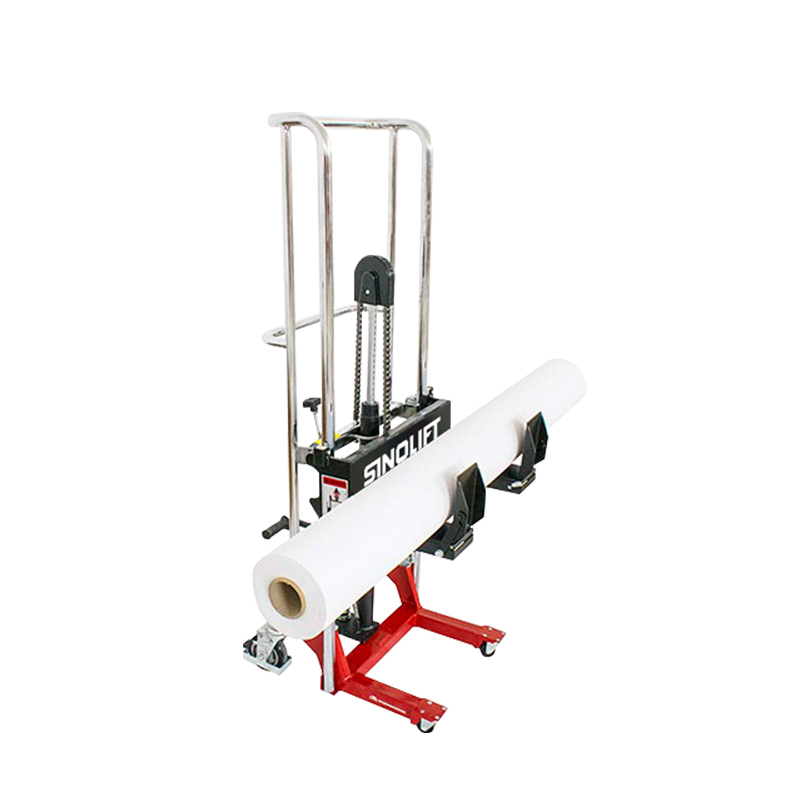

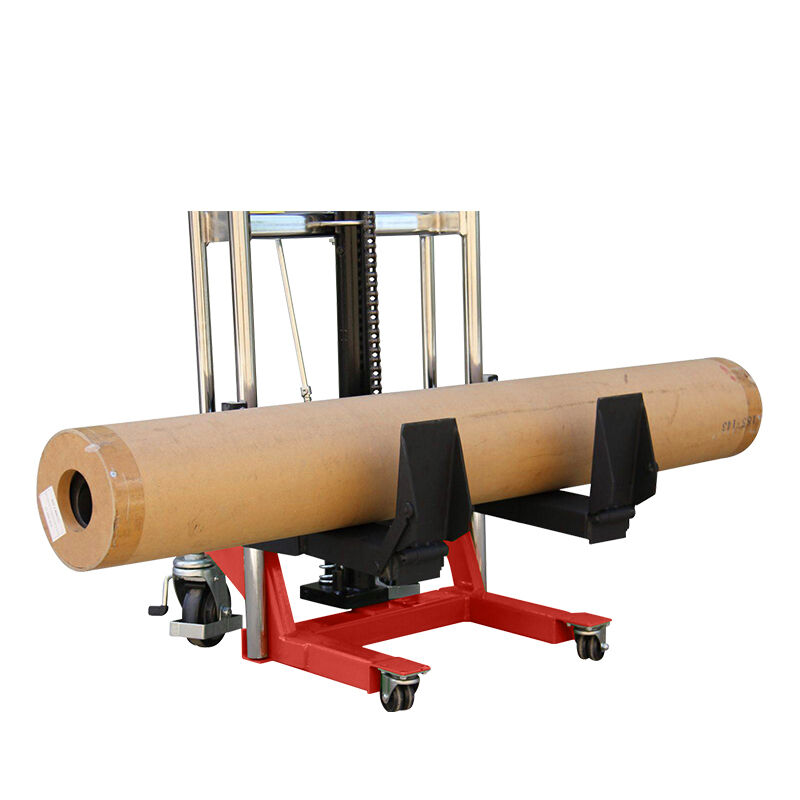

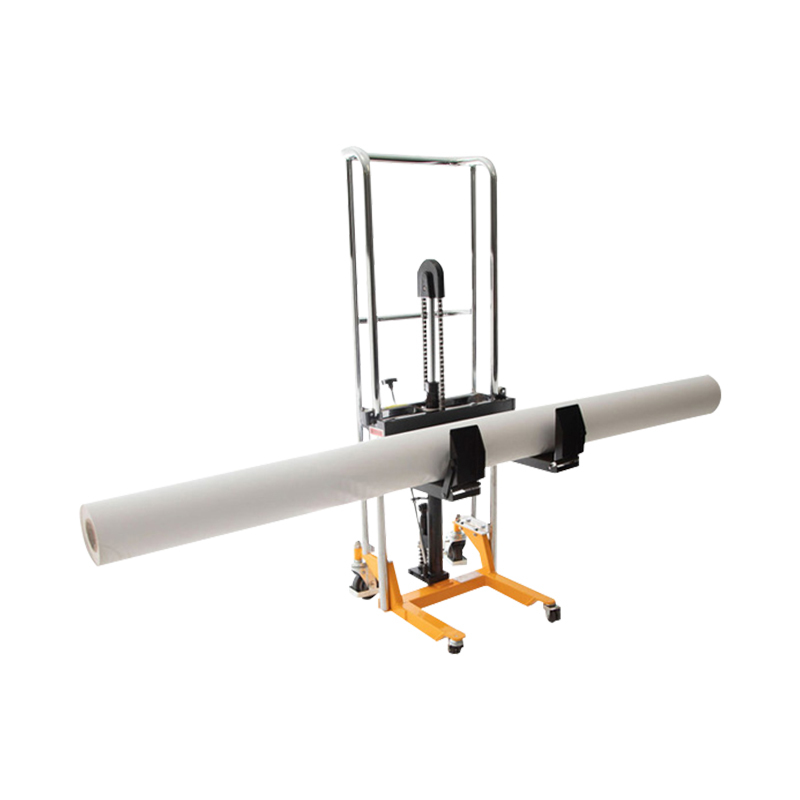

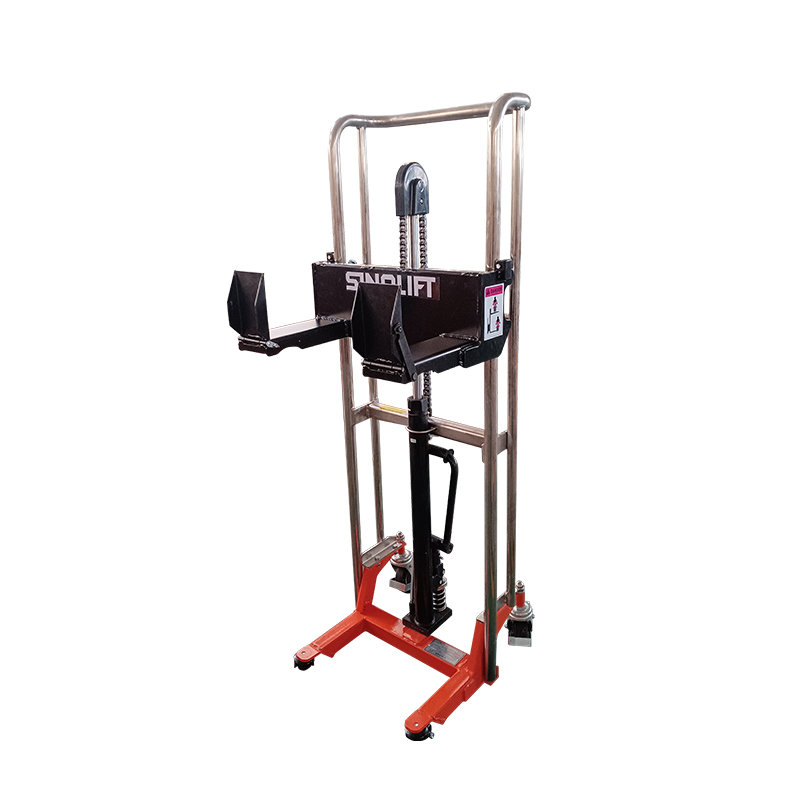

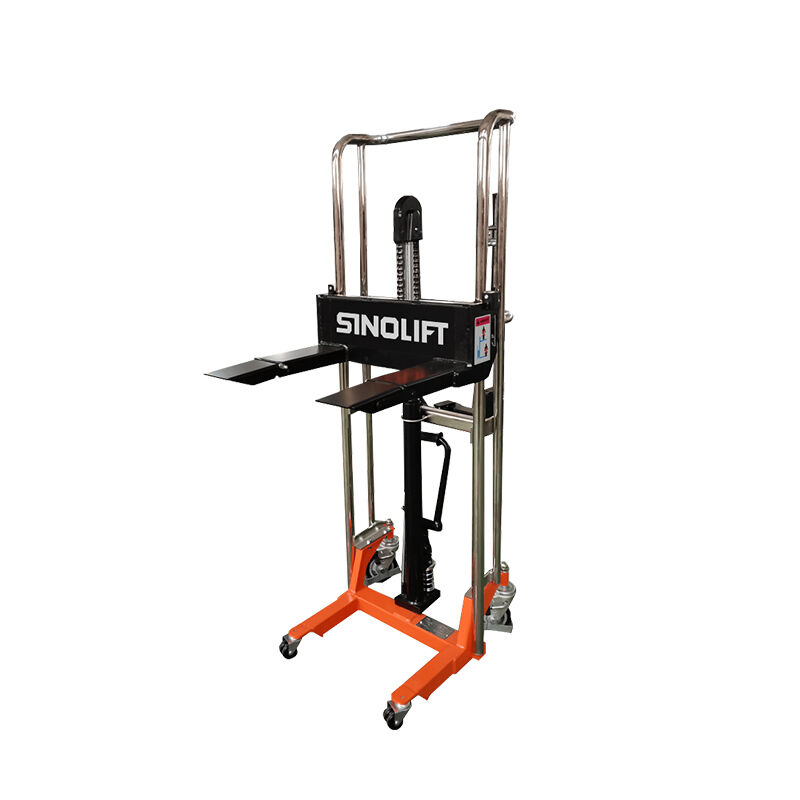

Sinolift PFM roll and reel material stacker - simple manual operation
The SINOLIFT PFM Media Lifter is a compact, ergonomic roll lifting solution designed for safely handling and transporting large cylindrical materials such as paper, film, and fabric rolls. Engineered for single-person operation, it enables users to easily load, lift, and position media rolls directly onto printers or production machines with minimal effort.
Featuring a durable steel structure, the lifter supports rolls up to 200 kg and 5 meters long. Its foot-pump hydraulic lifting system allows smooth and controlled elevation, while swivel PU casters ensure easy maneuverability through narrow aisles. The grooved cradle tray keeps rolls securely in place during movement, ensuring both safety and precision.
With its stable design, labor-saving operation, and robust build, the PFM Media Lifter is ideal for printing, textile, and packaging industries where efficient and safe roll handling is essential.
Specifications:
| Model | PFM | |
| Vendor Export Code | 61581 | |
| Roll Weight Capacity | kg (lbs) | 200 (440) |
| Lift Height | mm (inch) | 1300 (51") |
| Max. Roll Width | mm (inch) | Ø1800 (71") |
| Max. Roll Diameter | mm (inch) | 305 (12") |
| Overall Media Lifter Dimensions (W x D x H) | mm | 570 x 650 x 1580 |
| inch | 22.5″x 25.5″Dx 63.25″ | |
| Media Lifter Weight | kg (lbs) | 80(175) |
| Bottom Fork Clearance | mm (inch) | 75/3" |
| Front Swivel Casters | mm (inch) | Ø50(2") |
| Rear Swivel Casters | mm (inch) | Ø125(5") |
