| Место происхождения: | Китай |
|---|---|
| Фирменное наименование: | SINOLIFT |
| Сертификация: | CE, ISO9001 |
| Номер модели: | QSD30 QSD60 |
| Документ: | SINOLIFT QSD30 QSD60 Rider ...re.pdf |
| Количество мин заказа: | 1 набор |
| Цена: | Подлежит обсуждению |
| Упаковывая детали: | Пакет экспорта Sandard |
| Время доставки: | 15 дней |
| Условия оплаты: | L/C, D/A, D/P, T/T |
| Поставка способности: | 1000 наборов/рот |
| Название продукта: | Sinolift QSD30 QSD60 Rider Electric Town Tractor | Стиль вождения: | пешеход |
|---|---|---|---|
| Грузоподъемность: | 6000 кг | Гарантия: | 1 год |
| После обслуживания: | Служба в режиме онлайн, бесплатные запасные части |
https://youtu.be/884WS1T3A2k?si=tvLXZFLng4kHLdcS
Product Name

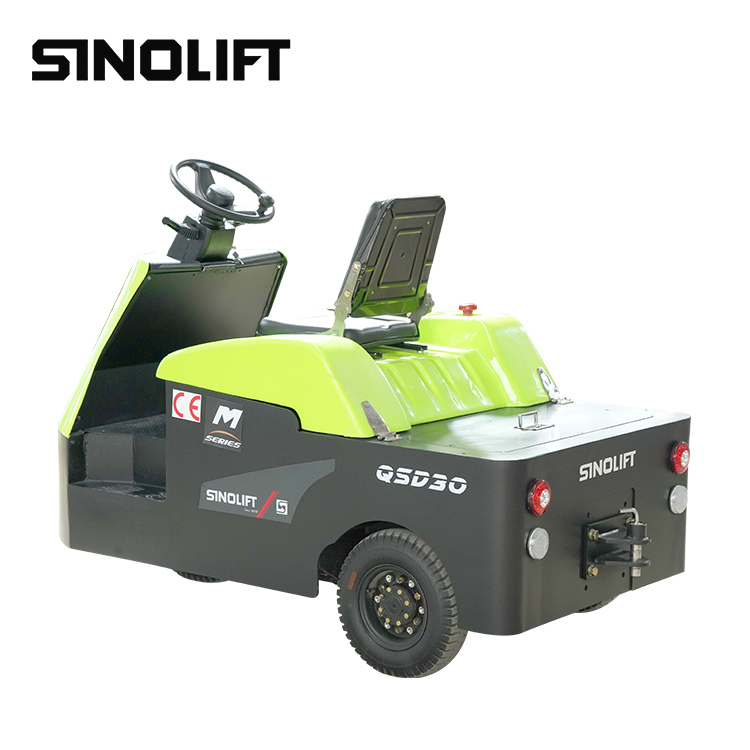

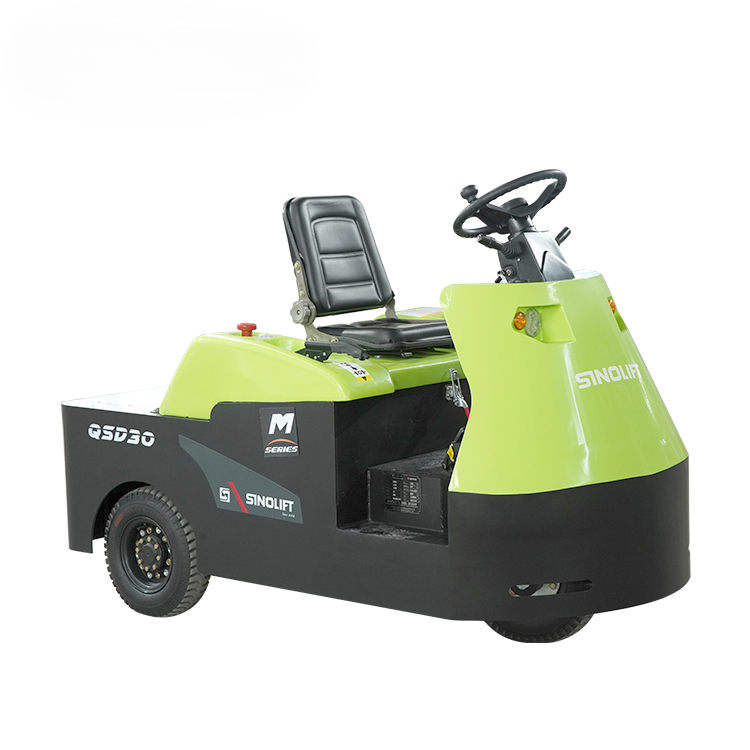

SINOLIFT QSD30 QSD60 Rider Electric Tow Tractor
The SINOLIFT QSD30/QSD60 rider-seated electric tow tractor incorporates German engineering and design, outperforming competitors in strength, versatility, and usability. Designed for efficiently towing heavy products and industrial equipment throughout your facility, this electric tow tractor operates with minimal noise, effortlessly moving materials from point A to point B. Ideal for distribution centers, factories, and warehouses, it ensures quiet and reliable performance in any demanding environment.
Features
Product Specifications
| ldentification | 1.1 | Manufacturer | SINOLIFT | |||
| 1.2 | Model | QSD30 | QSD60 | |||
| 1.3 | Power Type | Electric | ||||
| 1.4 | Type of operation | Seated | ||||
| 1.5 | Steering Mode | Electric Power Steering | ||||
| 1.6 | Wheelbase | y | mm | 1110 | 1110 | |
| Weight | 2.1 | Total Weight(with battery) | kg | 985 | 1180 | |
| 2.2 | Axle Load(unladen): Drive side/Load-bearing side | kg | / | / | ||
| Dimension | 3.1 | Overall length | L1 | mm | 2030 | 2030 |
| 3.2 | Overall width | W1 | mm | 1020 | 1020 | |
| 3.3 | Overall height | h5 | mm | 1350 | 1350 | |
| 3.4 | Couping Height(Hook center above ground) | h1 | mm | 300/350/400 | 300/350/400 | |
| 3.5 | Standing Platform | h2 | mm | 965 | 965 | |
| 3.6 | Ground Clearance at the center of wheelbase (Min) | m1 | mm | 110 | 110 | |
| 3.7 | Turning Radius | Wa | mm | 1520 | 1520 | |
| Tyre | 4.1 | Tyre Type | Inflatable rubber wheel | |||
| 4.2 | Tyre Size(Front) | mm | 4.00-8 | 4.00-8 | ||
| 4.3 | Tyre Size(Rear) | mm | 4.00-8 | 4.00-8 | ||
| 4.4 | Wheels Quantity, front/rear (x=driving wheels) | 1X/2 | 1X/2 | |||
| Performance | 5.1 | Traveling Speed(laden/unladen) | Km/h | 7.5/15 | 7.5/15 | |
| 5.2 | Rated Draw-bar Pull | F | N | 3800 | 4500 | |
| 5.3 | Max.Gradient Performance S25min laden/unladen) | % | 6/15 | 6/15 | ||
| 5.4 | Service Brake Type | Hydraulic | Hydraulic | |||
| 5.5 | Parking Brake Type | Mechanical | Mechanical | |||
| Power Unit | 6.1 | Drive Motor Rating(AC) S2-60min | kW | 5 | 5 | |
| 6.2 | Battery Vo ltage/Capacity K5 | V/Ah | 48/200 | 48/350 | ||
| 6.3 | Battery Weight | kg | 360 | 545 | ||
| Others | 7.1 | Controller Brand | CURTIS | CURTIS | ||
| 7.2 | Controller Model | 1232SE | 1232SE | |||
| 7.3 | Sound level at the driver's ear according to EN 12053 | dB | 70 | 70 | ||
